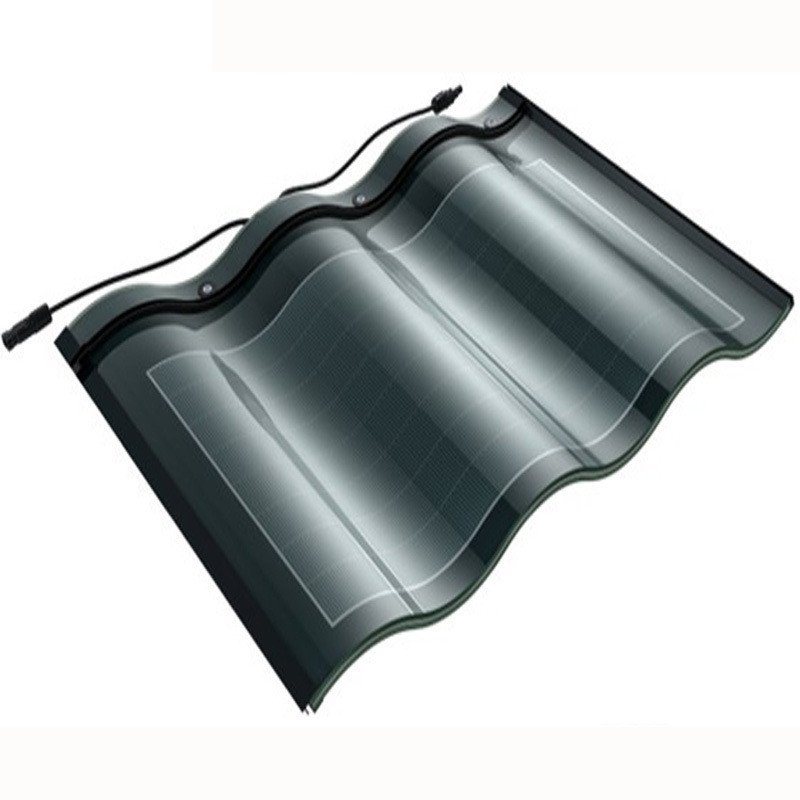

BIPV Solar Module CIGS Film Photovoltaic tiles
| Model: | HET-CS32T |
|---|---|
| Dimension: | 721*500*33MM |
| Pmax: | 32W |
| Weight: | 6.5KG |
| Color | Black/Red/Green |
Share:
Description
Full Black BC Photovoltaic tiles
MECHANICAL CHARACTERISTICS
| Dimensions | 721*500*33(LxWx H) |
| Weight | 6.5kg |
| Front Glass | 2.0+2.0mm high transmisson PV glass |
| Encapsulation | EVA |
| Cells | CIGS film |
| Frame | PPO+Anodized aluminum profile |
| Junction Box | Rated current:25A,IP67,TUV |
| Cable | 2.5mm2pv cable 500mm |
| Connector | Compatible with MC4 |
| Color | Black/Red/Green |
| Moudles Thickness | 8mm |
ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC)
Standard Test Conditons[STC]:irradiance 1000W/M2 ; >AM1.5;ambient temperature 25°C according to EN 60904-3
| Max Power-Pm [W] | 32W |
| Open Circuit Voltage-Voc[V] | 10.8 |
| Short Circuit Current-lsc[A] | 4.10 |
| Max Power Voltage-Vmp[V] | 8.90 |
| Max Power Current-lmp[A] | 3.60 |
| Max System Volatge[V] | 500VDC |
| Max Fuse Current[A] | 16A |
| Maximum number of series | 48pcs |
