Lithium Battery On And OFF Grid Solar System Hybrid Solar System 5KW 10KW for home
| Model： | HET-SMR-5K/10K |
|---|---|
| Phase: | Single Phase/Three Phase |
| AC output: | 220V/230V/240V EU standard Single Phase |
| Deye Hybrid Inverter | 5KW/10KW Deye Hybrid Inverter |
Share:
Description
STROAGE SOLAR SYSTEM – Smart
REDUCE YOUR ENERGY BILLS
A hybrid system is when your solar panels remain connected to the grid’s power lines and have a backup battery system to store excess power. The sun’s energy absorbed by the solar panels goes through an inverter to create usable electricity. From there, electricity either goes to your home, to your battery, or to the grid. The benefit of a hybrid solar system is that you will always have power in any situation. With a backup battery, the excess energy that your solar panels create (but your home does not use), will be stored in this battery. Then, when the sun is not shining, this battery will provide your power during the night, system blackouts or inclement weather.
Advantage
- Increase Self Consumption of solar power
- Enables advanced management of the energy
- Online Monitoring
- Charge From Grid
- Plug & Play’ Installation
- Emergency Power Supply
System Info
| Model Number | HET-SMR-5K/10K |
| Battery Type | Lithium Iion |
| Mounting Type | Ground Mounting/Roof Mounting/Carport Mounting |
| Output Voltage (V) | 110V/220V/380V |
| Output Frequency | 50hz/60hz |
| System Efficiency | >90% |
| Certificate | CE/SONCAP/TUV/ISO |
| OEM Service | Acceptable |
| Application | Home |

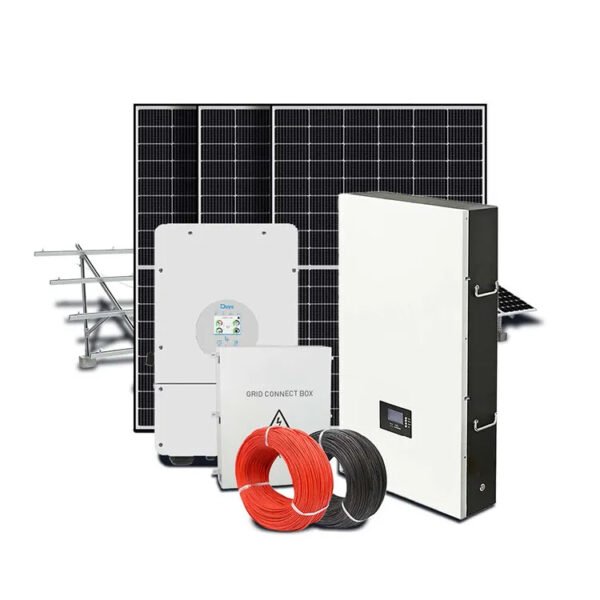

System Configuration
| Type | HET-SMR-5K | HET-SMR-10K |
| Solar Panel | 420W mono solar panel * 12pcs | 420W mono solar panel * 24pcs |
| Deye Hybrid Grid Inverter Model | SUN-5K-SG03LP1-EU | SUN-10K-SG04LP3-EU |
| Lithium Battery (Li2FePO4 Battery Capacity) | Wall-mounted 5.12K | Wall-mounted 10.55K |
| Grid Connect box | AC switch with surge protecting | AC switch with surge protecting |
| Bracket | 1Steel and aluminum material Sloping roof/Flat roof * 1 set | 1Steel and aluminum material Sloping roof/Flat roof * 1 set |
| DC Cable 4mm2 | 100M PV cable | 100M PV cable |
| MC4 Connector | 10pairs | 10paris |
| ACCESSORIES | Wire crimping and stripping pliers MC4 wrench,Battery cable and bracket | Wire crimping and stripping pliers MC4 wrench,Battery cable and bracket |
Wire Diagram
Packing
