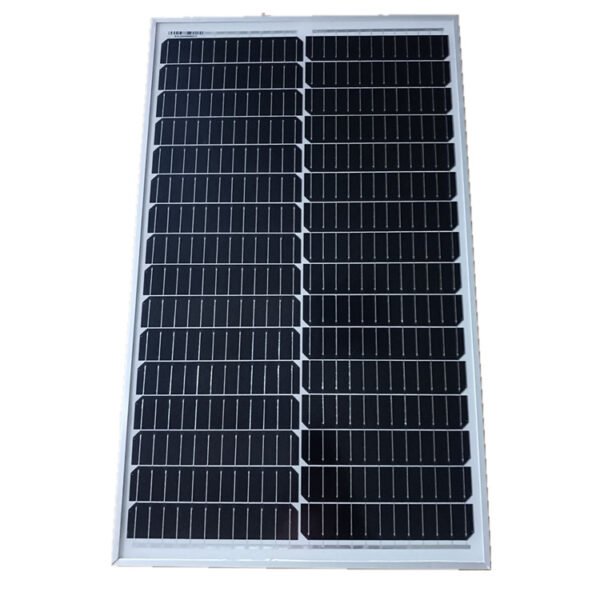

Monocrystalline Solar Panel 50W
| Model: | HET-50S36A |
|---|---|
| Dimension: | 395*660*25MM |
| Pmax: | 50W |
| Weight: | 2.85KG |
| Color | Slive Frame/Black Frame/Full Black |
| Packing: | 1pcs/Carton Box or |
Share:
Description
Customiized Topcon N-type Solar Modules 50W
Mechanical Parameters
| Mechanical Parameters | |
| Solar Cell | Mono N-Type 182mm |
| No. of Cells | 32cells |
| Junction Box | IP65 rated |
| Output Cable | 900mm PV cable or customized |
| Front Cover | 3.2mm high transmisson tempered glass |
| Back Cover |
Electrical Characteristics
STC
Irradiance 1000 W/m², cell temperature 25 °C, AM1.5, , Test uncertainty for Pmax: ±3%
| Maximum Power at STC (Pmax/W) | 50W |
| Optimum Operating Voltage (Vmp/V) | 18.56V |
| Optimum Operating Current (Imp/A) | 2.70A |
| Open Circuit Voltage (Voc/V) | 22.27 V |
| Short Circuit Current (Isc/A) | 2.85A |
