Lithium Battery Cluster Energy Storage System Container
| Model： | HET-ESS-20ft/40ft |
|---|---|
| Phase: | Three Phase |
| AC output: | 380/400V EU standard Three Phase |
| Lithium Battery | Lithium Battery Pack |
Share:
Description
ENERGY STORAGE SYSTEM CONTAINER
Product introduction
The container energy storage system includes: energy storage battery system, PCS booster system, fire fighting system,monitoring system, etc. It is widely used in scenarios such as power security, back-up power, peak shaving and valley filling，new energy consumption and grid load smoothing, etc.
Performance characteristics
- Flexible configuration of battery system types and capacities according to customer requirements
- The PCS/MPS has a modular architecture, simple maintenance and flexible configuration, allowing for multiple parallel machines
- Support parallel and off-grid operation mode, seamless switching, black start support
- EMS unattended system, locally controlled, cloud-monitored operation, with highly customized features
- Various modes including peak and valley reduction, demand response, backflow prevention, back-up power, command response, etc
- Complete gas fire extinguishing system and automatic fire monitoring and alarm system with audible and visual alarm and fault uploading
- Complete thermal and temperature control system to ensure that the battery compartment temperature is within the optimum operating range
- Access control system with remote control and local operation
System Configuration
| Type | HET-ESS-20ft | HET-ESS-40ft |
| Output volt | 400V/480V | 400V/480V |
| Grid frequency | 50/60Hz(±2.5Hz) | 50/60Hz(±2.5Hz) |
| Output power | 50-300kW | 250-630kW |
| Battery capacity | 200-600kWh | 600-2MWh |
| Battery type | LiFePO4 | LiFePO4 |
| Size | Inside size（L*W*H):5.898*2.352*2.385 Outside size（L*W*H):6.058*2.438*2.591 | Inside size（L*W*H)::12.032*2.352*2.385 Outside size（L*W*H):12.192*2.438*2.591 |
| Protection level | IP54 | IP54 |
| Humidity | 0-95% | 0-95% |
| Altitude | 3000m | 3000m |
| Working temperature | -20~50℃ | -20~50℃ |
| Battery volt range | 500-850V | 500-850V |
| Connect method | 3P4W | 3P4W |
| Power factor | -1~1 | -1~1 |
| Communication method | RS485,CAN,Ethernet | RS485,CAN,Ethernet |
| Isolation method | Low frequency isolation with transformer | Low frequency isolation with transformer |

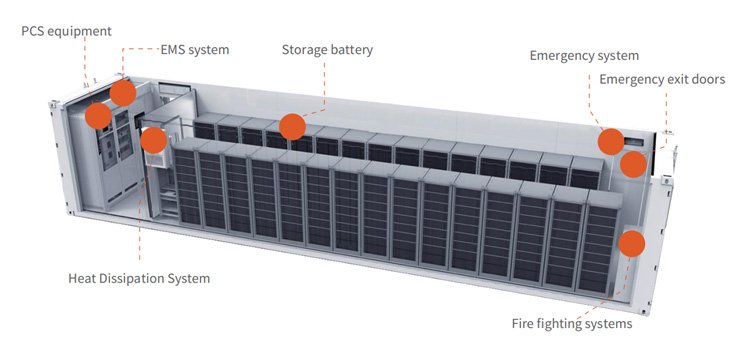

Energy storage container structure distribution map
