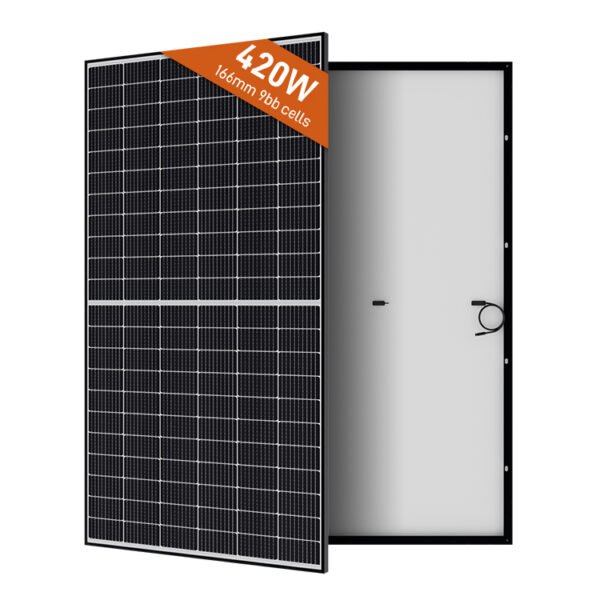

P type Black Frame Mono Solar Panel 420W
| Model: | HET-420M8S54AH |
|---|---|
| Dimension: | 1722*1134*30mm |
| Pmax: | 420W |
| Weight: | 20.5KG |
| Color | Slive Frame/Black Frame/Full Black |
| Packing: | 36pcs/pallets 72pcs/stack 936pcs/40HQ container |
Share:
Description
P type Black Frame Mono Solar Panel 420W
MECHANICAL CHARACTERISTICS
| Dimensions | 1722x1134x30mm(LxWx H) |
| Weight | 20.5kg |
| Front Glass | 3.2mm high transmisson tempered glass |
| Encapsulation | EVA |
| Cells | 108pcs 182x91mm Monocrystalline solar cells |
| Backsheet | Composite film |
| Frame | Anodized aluminum profile |
| Junction Box | Rated current:25A,IP68,TUV |
| Cable | Length Negative 300mm/Positive 300mm |
| Connector | Compatible with MC4 |
ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC)
Standard Test Conditons[STC]:irradiance 1000W/M2 ; >AM1.5;ambient temperature 25°C according to EN 60904-3
| Max Power-Pm [W] | 420 |
| Open Circuit Voltage-Voc[V] | 37.58 |
| Short Circuit Current-lsc[A] | 14.10 |
| Max Power Voltage-Vmp[V] | 31.80 |
| Max Power Current-lmp[A] | 13.21 |
| Module Efficiency-p[%] | 21.9 |
