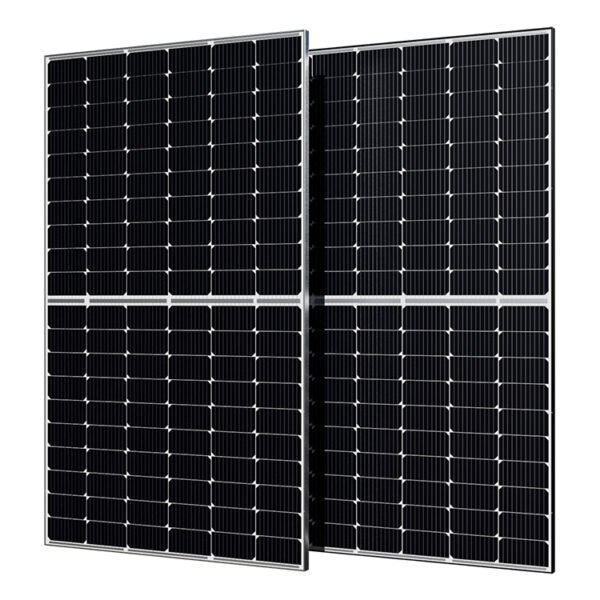

P type Black Frame Mono Solar Panel 450W
| Model: | HET-450M72AH |
|---|---|
| Dimension: | 2108*1048*35MM |
| Pmax: | 450W |
| Weight: | 24.0KG |
| Color | Slive Frame/Black Frame/Full Black |
| Packing: | 31pcs/pallets 62pcs/stack 682pcs/40HQ container |
Share:
Description
P type Black Frame Mono Solar Panel 420W
MECHANICAL CHARACTERISTICS
| Dimensions | 2108x1048x35mm(LxWx H) |
| Weight | 24.0kg |
| Front Glass | 3.2mm high transmisson tempered glass |
| Encapsulation | EVA |
| Cells | 144pcs 166*83mm Monocrystalline solar cells |
| Backsheet | Composite film |
| Frame | Anodized aluminum profile |
| Junction Box | Rated current:25A,IP68,TUV |
| Cable | Length Negative 300mm/Positive 300mm |
| Connector | Compatible with MC4 |
ELECTRICAL CHARACTERISTICS AT STANDARD TEST CONDITIONS(STC)
Standard Test Conditons[STC]:irradiance 1000W/M2 ; >AM1.5;ambient temperature 25°C according to EN 60904-3
| Max Power-Pm [W] | 450W |
| Open Circuit Voltage-Voc[V] | 49.70 |
| Short Circuit Current-lsc[A] | 11.36 |
| Max Power Voltage-Vmp[V] | 41.52 |
| Max Power Current-lmp[A] | 10.84 |
| Module Efficiency-p[%] | 20.70 |
